UAM-4X3-MINI

Print This Product
Email to Friend

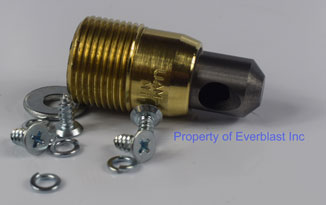

Mini Tungsten Carbide angle nozzle - 3 X 1/4" Ports.
Mini Tungsten carbide angle nozzle # 4
Description

Tungsten carbide Angle nozzle, UAM-4X3 mini. With three 1/4" bore ports .  3/4" NPSM brass threads.

Overall Height:       2.14" / 54.36 mm

O.D. over threads:   1" /25.4 mm

O.D. over carbide:   0.67"/17.02mm

Uses NW-34 Washer

tn miniangle1

Model Number Part Number Length Inlet size

Bore

Outlets

UAM-4X1-MINI 3241075 2.25" 0.50"/12.7 mm 1/4" /6.35 mm 1
UAM-4X3-MINI 3241077 2.25" 0.50" / 12.7 mm 1/4" / 6.35 mm 3
UAM-6X1-MINI 3241078 2.25" 0.50" / 12.7 mm 3/8" / 9.53 mm 1
