UAM-4X1-MINI

Print This Product
Email to Friend

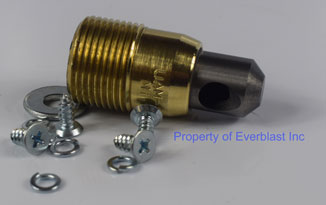

Miniature Tungsten Carbide angle nozzle - 1 X 1/4" Port. UAM-4X1-Mini
Mini Angle Nozzle UAM-4X1
Description

Miniature tungsten carbide sandblasting angle nozzle with one 1/4" bore port.  For blast cleaning at an angle in sandblasting cabinets & similar close up blast cleaning applications.  Useful when blast cleaning items with curved inner surfaces or difficult to clean I.D. shapesFits into CHE-1/2 style nozzle holders.

Tungsten carbide Angle nozzle, UAM-4X1 mini. With one 1/4" bore port.  3/4" NPSM brass threads.

Overall Height:       2.14" / 54.36 mm

O.D. over threads:   1" /25.4 mm

O.D. over carbide:    0.67"/17.02mm

Uses NW-34 Washer

tn miniangle1



Model Number Part Number Length Inlet size / mm

Bore

Outlets

 Angle  Direction
UAM-4X1-MINI 3241075 2.25" 0.50" / 12.7 mm 1/4"/6.35 mm  1 45 deg. forward shooting
UAM-4X3-MINI 3241077 2.25" 0.50" /12.7 mm 1/4" / 6.35 mm  3 45 deg. forward shooting
UAM-6X1-MINI 3241078 2.25" 0.50" / 12.7 mm 3/8" / 9.53 mm  1 45 deg. forward shooting
